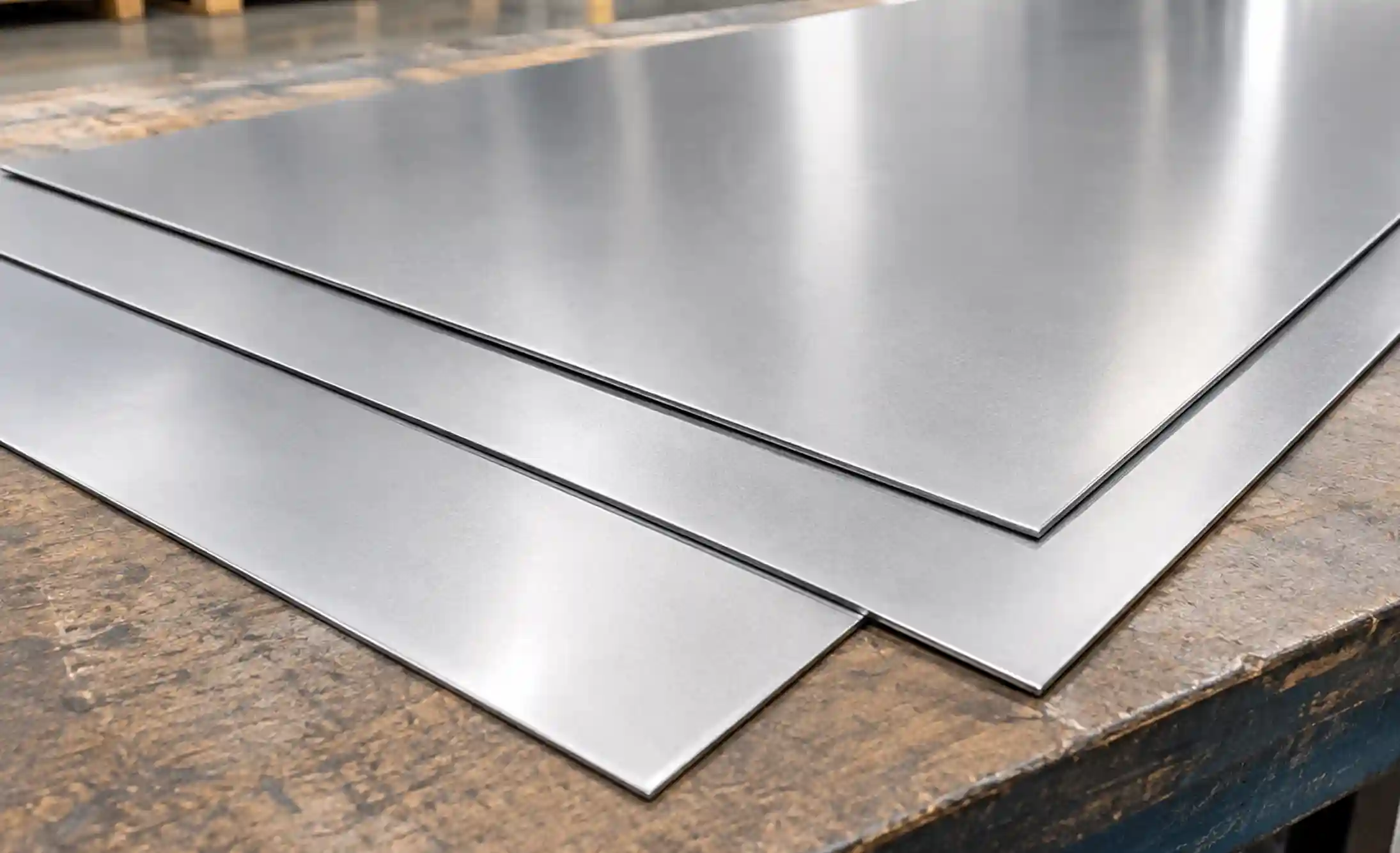

5754 H22 Aluminium Sheet Stockist in India

Renaissance Fittings & Piping is a 5754 H22 aluminium sheet stockist in India, supplying EN AW-5754 H22 aluminium sheets for automotive components, transportation equipment, marine fabrication, chemical processing, industrial fabrication and general engineering applications.

5754 H22 aluminium sheet is an AlMg3 alloy in a strain-hardened and partially annealed temper. It provides higher strength than the H111 condition, with a tensile strength of 220–270 MPa and minimum 0.2% proof stress of 130 MPa under EN 485-2 requirements.

Request a Quote

5754 H22 Aluminium Sheet Specifications

Specification	Details
Aluminium Grade	5754
Temper	H22
UNS	A95754
EN Designation	EN AW-5754
Alloy Designation	AlMg3
Werkstoff Number	3.3535
Product Form	Aluminium Sheet
Product Standard	EN 485-2
Chemical Standard	EN 573-3
ASTM Standard	ASTM B209
ASME Standard	ASME SB209
Heat Treatment	Non-heat-treatable
Density	2.66 g/cm³
Surface	Mill Finish / As Specified

5754 H22 Aluminium Sheet Sizes and Dimensions

5754 H22 aluminium sheets are supplied in different thicknesses and sheet dimensions for industrial and fabrication requirements.

Parameter	Reference Size / Range
Thickness	0.2–6.0 mm for sheet
Width	Up to 1500 mm
Length	Up to 3000 mm
Common Size	1000 × 2000 mm
Common Size	1250 × 2500 mm
Common Size	1500 × 3000 mm
Product Form	Sheet
Surface	Mill Finish

5754 H22 Aluminium Sheet Weights

Thickness	Sheet Size	Approx. Weight
1.0 mm	2000 × 1000 mm	5.32 kg
1.5 mm	2000 × 1000 mm	7.98 kg
2.0 mm	2000 × 1000 mm	10.64 kg
2.5 mm	2000 × 1000 mm	13.30 kg
3.0 mm	2000 × 1000 mm	15.96 kg
4.0 mm	2000 × 1000 mm	21.28 kg
5.0 mm	2000 × 1000 mm	26.60 kg
6.0 mm	2000 × 1000 mm	31.92 kg

The weights are calculated from the nominal 2.66 g/cm³ density and stated sheet dimensions. Actual supplied weight can vary according to dimensional tolerances.

5754 H22 Aluminium Sheet Chemical Composition

Element	Composition %
Magnesium (Mg)	2.60–3.60
Manganese (Mn)	≤ 0.50
Silicon (Si)	≤ 0.40
Iron (Fe)	≤ 0.40
Copper (Cu)	≤ 0.10
Chromium (Cr)	≤ 0.30
Zinc (Zn)	≤ 0.20
Titanium (Ti)	≤ 0.15
Manganese + Chromium	0.10–0.60
Other, Each	≤ 0.05
Other, Total	≤ 0.15
Aluminium	Balance

5754 H22 Aluminium Sheet Mechanical Properties

Nominal Thickness	Tensile Strength Rm	Proof Stress Rp0.2 Min.	Elongation A50 Min.	Hardness HBW
0.2–0.5 mm	220–270 MPa	130 MPa	7%	63
>0.5–1.5 mm	220–270 MPa	130 MPa	8%	63
>1.5–3.0 mm	220–270 MPa	130 MPa	10%	63
>3.0–6.0 mm	220–270 MPa	130 MPa	11%	63
>6.0–12.5 mm	220–270 MPa	130 MPa	10%	63
>12.5–40.0 mm	220–270 MPa	130 MPa	9%*	63

5754 H22 Aluminium Sheet Bend Requirements

Nominal Thickness	90° Bend Radius	180° Bend Radius
0.2–0.5 mm	0.5t	1.5t
>0.5–1.5 mm	1.0t	1.5t
>1.5–3.0 mm	1.5t	2.0t
>3.0–6.0 mm	1.5t	—
>6.0–12.5 mm	2.5t	—

5754 H22 Aluminium Sheet Standards and Designations

Standard / Designation	Details
EN Alloy	EN AW-5754
Temper	H22
Chemical Composition	EN 573-3
Mechanical Properties	EN 485-2
ASTM	ASTM B209
ASME	ASME SB209
UNS	A95754
Alloy Designation	AlMg3
Werkstoff Number	3.3535
AA Designation	5754

5754 H22 Aluminium Sheet Applications

5754 H22 aluminium sheets are selected for applications requiring higher strength than softer 5754 conditions while retaining the alloy's corrosion resistance and fabrication capability.

Automotive body panels and components
Vehicle and transportation equipment
Marine structures
Shipbuilding components
Offshore fabricated components
Chemical processing equipment
Food-processing equipment
Industrial panels and structures
Storage and process equipment
Sheet-metal components
General engineering components
Fabricated aluminium structures
Architectural components
