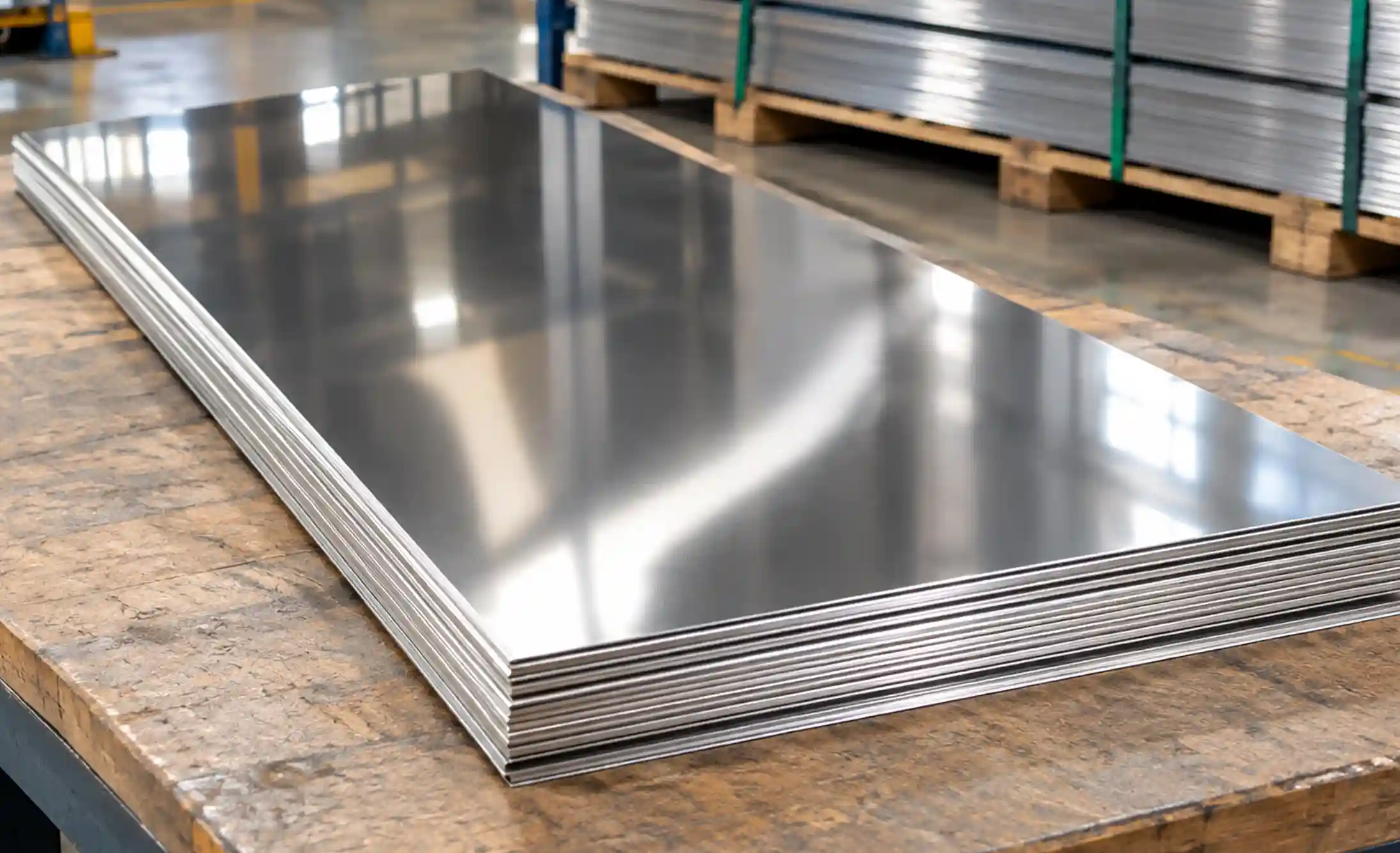

5754 H111 Aluminium Sheets Stockist in India

Renaissance Fittings & Piping is a 5754 H111 aluminium sheets stockist in India, supplying EN AW-5754 H111 aluminium sheets for industrial fabrication, transportation, marine, automotive, chemical processing and general engineering applications.

5754 H111 aluminium sheets are made from the AlMg3 alloy and supplied in the H111 temper, offering good formability, weldability and resistance to atmospheric and seawater corrosion. Sheets are available in required thicknesses and dimensions according to the applicable material specification.

Request a Quote

5754 H111 Aluminium Sheet Specifications

Specification	Details
Aluminium Grade	5754
Temper	H111
UNS	A95754
EN Designation	EN AW-5754
Alloy Designation	AlMg3
Werkstoff Number	3.3535
Product Form	Aluminium Sheet
Product Standard	EN 485-2
Chemical Standard	EN 573-3
ASTM Standard	ASTM B209
ASME Standard	ASME SB209
Heat Treatment	Non-heat-treatable
Density	2.66 g/cm³
Surface	Mill Finish

EN AW-5754 is specified as an AlMg3 aluminium alloy, with H111 among its recognized delivery conditions for sheet and plate products.

5754 H111 Aluminium Sheet Sizes and Dimensions

5754 H111 aluminium sheets can be supplied in different thicknesses, widths and lengths depending on the required sheet specification.

Parameter	Size / Range
Thickness	0.2–6.0 mm
Width	Up to 1500 mm
Length	Up to 3000 mm
Common Sheet Size	1000 × 2000 mm
Common Sheet Size	1250 × 2500 mm
Common Sheet Size	1500 × 3000 mm
Product Form	Sheet
Surface	Mill Finish

The EN 485-2 mechanical-property tables specifically cover 5754 H111 sheet thicknesses from 0.2 mm through 6.0 mm.

5754 H111 Aluminium Sheet Reference Weights

Using a nominal density of 2.66 g/cm³, the following are reference weights for common sheet dimensions:

Thickness	Sheet Size	Approx. Weight
1.0 mm	2000 × 1000 mm	5.32 kg
1.5 mm	2000 × 1000 mm	7.98 kg
2.0 mm	2000 × 1000 mm	10.64 kg
2.5 mm	2000 × 1000 mm	13.30 kg
3.0 mm	2000 × 1000 mm	15.96 kg
4.0 mm	2000 × 1000 mm	21.28 kg
5.0 mm	2000 × 1000 mm	26.60 kg
6.0 mm	2000 × 1000 mm	31.92 kg

These are calculated nominal weights based on the stated dimensions and 2.66 g/cm³ density. Actual supplied weight can vary with dimensional tolerances.

5754 H111 Aluminium Sheet Chemical Composition

Element	Composition %
Magnesium (Mg)	2.60–3.60
Manganese (Mn)	0.00–0.50
Iron (Fe)	0.00–0.40
Silicon (Si)	0.00–0.40
Copper (Cu)	0.00–0.10
Chromium (Cr)	0.00–0.30
Zinc (Zn)	0.00–0.20
Titanium (Ti)	0.00–0.15
Manganese + Chromium	0.10–0.60
Other, Each	≤0.05
Other, Total	≤0.15
Aluminium	Balance

These composition limits correspond to EN AW-5754 chemical requirements under EN 573-3.

5754 H111 Aluminium Sheet Mechanical Properties

The mechanical requirements for 5754 H111 depend on the nominal sheet thickness.

Nominal Thickness	Tensile Strength Rm	Proof Stress Rp0.2 Min.	Elongation A50 Min.	Hardness HBW	180° Bend Radius	90° Bend Radius
0.2–0.5 mm	190–240 MPa	80 MPa	12%	52	0.5t	0t
>0.5–1.5 mm	190–240 MPa	80 MPa	14%	52	0.5t	0.5t
>1.5–3.0 mm	190–240 MPa	80 MPa	16%	52	1.0t	1.0t
>3.0–6.0 mm	190–240 MPa	80 MPa	18%	52	1.0t	1.0t

The above values are the EN 485-2 mechanical-property requirements for EN AW-5754 in O/H111 condition.

5754 H111 Aluminium Sheets Standards and Designations

Standard / Designation	Details
EN Alloy	EN AW-5754
Temper	H111
Chemical Composition	EN 573-3
Mechanical Properties	EN 485-2
ASTM	ASTM B209
ASME	ASME SB209
UNS	A95754
Alloy Designation	AlMg3
Werkstoff Number	3.3535
AA Designation	5754

The designations identify 5754 aluminium across commonly used European, American and international material systems.

5754 H111 Aluminium Sheets Applications

Automotive body panels and vehicle components
Marine structures and seawater-exposed components
Shipbuilding and marine fabrication
Transportation equipment
Offshore fabricated components
Chemical processing equipment
Food-processing equipment
Welded industrial structures
Storage and process equipment
Sheet-metal components
General engineering components
Enclosures, panels and formed parts
