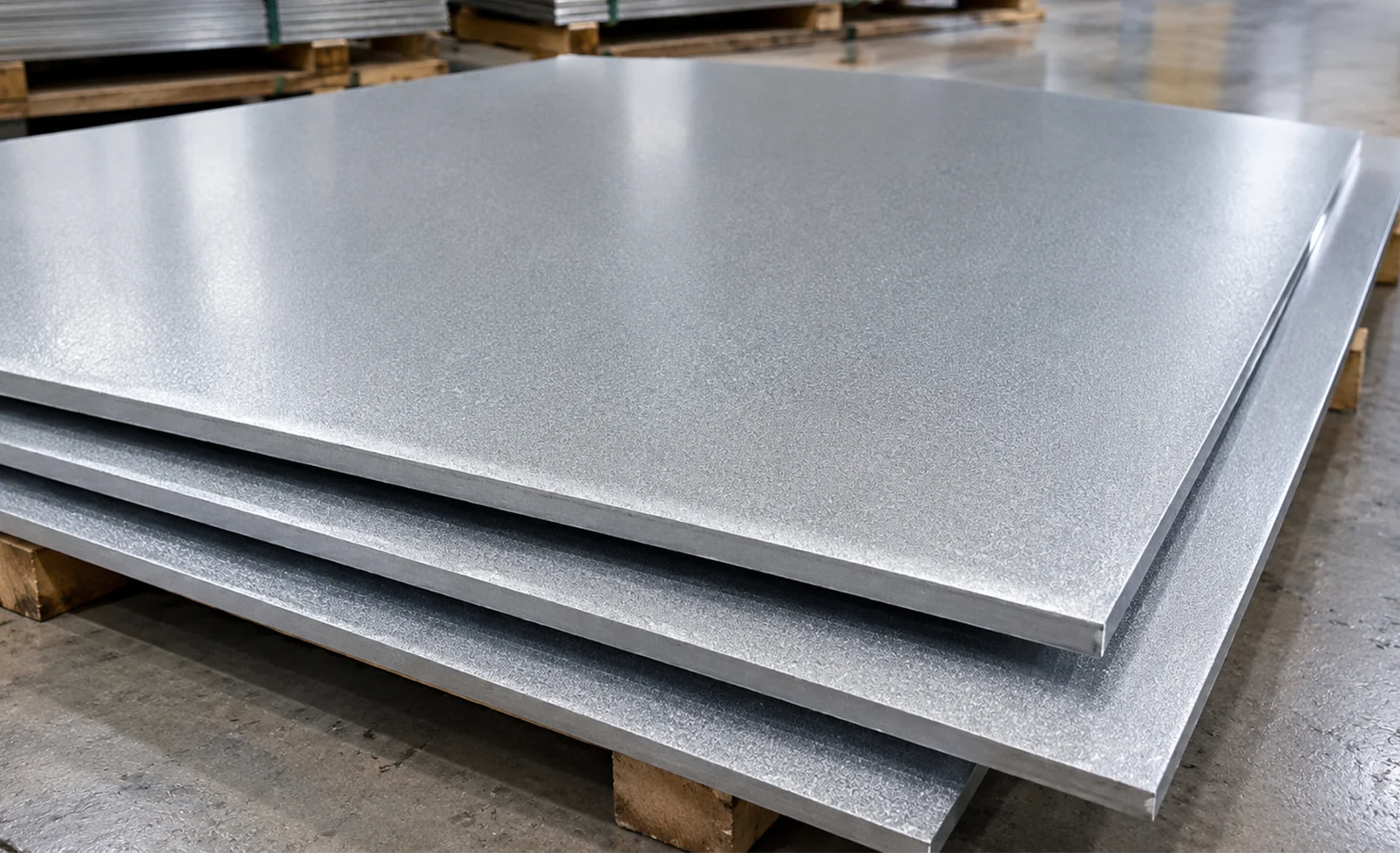

ALCA 5 aluminium plates are precision cast plates based on the AA 5083 aluminium alloy matrix, with controlled thickness, flatness and double-sided face milling. Standard plate thickness ranges from 1/4 inch (6.35 mm) to 4 inches (101.6 mm) with a uniform ±0.005 inch (±0.127 mm) thickness tolerance.
Renaissance Fittings & Piping supplies ALCA 5 aluminium plates in India with precision-milled faces, controlled flatness and dual-side PE/PVC protection. Custom mill orders can extend the plate thickness to 8 inches (203.2 mm).
ALCA 5 Aluminium Plate Specifications
| Parameter | Specification |
|---|---|
| Product | ALCA 5 Aluminium Plate |
| Alloy Matrix | AA 5083 |
| Material Family | 5000-Series Cast Aluminium |
| Manufacturing Process | Vertical Direct Chill (DC) Casting |
| Thermal Treatment | Thermally stabilized to eliminate internal stress |
| Standard Thickness | 1/4–4 inches (6.35–101.6 mm) |
| Custom Thickness | Up to 8 inches (203.2 mm) |
| Thickness Tolerance | ±0.005 inch (±0.127 mm) |
| Flatness below 3/4 inch | ≤0.015 inch (0.381 mm) |
| Flatness 3/4 inch and above | ≤0.005 inch (0.127 mm) |
| Surface Finish | Milled on both sides |
| Surface Roughness | ≤16 micro-inches Ra (≤0.40 µm) |
| Production Standard | AA 5083 chemical matrix |
| Surface Protection | Dual-side PE/PVC |
| Surface Condition | Clean and scratch-free |
ALCA 5 Aluminium Plate Thickness and Flatness Tolerance
The ALCA 5 specification uses a ±0.005 inch (±0.127 mm) thickness tolerance. Flatness is specified according to the plate thickness.
| Plate Thickness | Thickness Tolerance | Flatness |
|---|---|---|
| 1/4 to below 3/4 inch (6.35 to below 19.05 mm) | ±0.005 inch (±0.127 mm) | ≤0.015 inch (0.381 mm) |
| 3/4 to 4 inches (19.05–101.6 mm) | ±0.005 inch (±0.127 mm) | ≤0.005 inch (0.127 mm) |
| Custom thickness up to 8 inches (203.2 mm) | Custom mill order | Confirm with mill specification |
ALCA 5 Aluminium Plate Surface Finish
| Surface Parameter | Specification |
|---|---|
| Face Preparation | Milled on both sides |
| Surface Roughness | ≤16 micro-inches Ra |
| Metric Surface Roughness | ≤0.40 µm |
| Surface Protection | Dual-side PE/PVC |
| Surface Condition | Clean and scratch-free |
The plate faces are milled on both sides and protected with PE/PVC masking to maintain the specified surface condition during handling.
ALCA 5 Aluminium Plate Chemical Composition
| Element | Composition |
|---|---|
| Magnesium (Mg) | 4.00–4.90% |
| Manganese (Mn) | 0.40–1.00% |
| Chromium (Cr) | 0.05–0.25% |
| Silicon (Si) | Max. 0.40% |
| Iron (Fe) | Max. 0.40% |
| Zinc (Zn) | Max. 0.25% |
| Copper (Cu) | Max. 0.10% |
| Titanium (Ti) | Max. 0.15% |
| Aluminium (Al) | Balance |
ALCA 5 follows the AA 5083 chemical matrix, with magnesium as the principal alloying element.
ALCA 5 Aluminium Plate Mechanical Properties
| Property | Value |
|---|---|
| Ultimate Tensile Strength | 283 MPa (41,000 psi) |
| Tensile Yield Strength | 124 MPa (18,000 psi) |
| Brinell Hardness | 70 HB |
| Elongation | 16% in 2 inches |
| Density | 2.66 g/cm³ (0.096 lb/in³) |
| Modulus of Elasticity | 71 GPa (10,300 ksi) |
| Thermal Conductivity | 119 W/(m·K) |
ALCA 5 Aluminium Plate Welding Properties
The supplied ALCA 5 technical data specifies MIG and TIG welding with 5183 or 5356 filler material.
- MIG welding
- TIG welding
- 5183 filler wire
- 5356 filler wire
- AA 5083 aluminium alloy matrix
Welding procedures and filler selection should follow the applicable fabrication specification.
ALCA 5 Aluminium Plate Material and Alloy Designation
| Designation | Reference |
|---|---|
| Commercial Grade | ALCA 5 |
| Alloy Matrix | AA 5083 |
| Alloy Series | 5000-Series Aluminium |
| Primary Alloying Element | Magnesium |
| Aluminium | Balance |
ALCA 5 is specified as a precision cast aluminium plate based on the AA 5083 chemical matrix.
ALCA 5 Aluminium Plate Manufacturing Process
ALCA 5 is produced using Vertical Direct Chill (DC) casting, followed by thermal stabilization and precision milling.
- Vertical Direct Chill (DC) casting
- Thermal stabilization to eliminate internal stress
- Double-sided face milling
- Surface inspection
- Dual-side PE/PVC protection
ALCA 5 Aluminium Plate Machining
The controlled thickness, flatness and milled surfaces make the ALCA 5 specification particularly relevant to machining and tooling work.
- CNC machining
- Precision face milling
- Drilling
- Machined tooling plates
- Jigs and fixtures
- Inspection fixtures
- Machine bases
- Machined engineering plates
- Fabricated and machined assemblies
ALCA 5 Aluminium Plate Applications
- CNC machining industry: precision-machined plates, tooling and fixtures.
- Tooling industry: jigs, fixtures and tooling plates.
- Industrial machinery industry: machine bases, structural plates and machined assemblies.
- Engineering industry: precision-machined engineering plates and assemblies.
- Fabrication industry: aluminium fabricated structures and welded assemblies.
- Marine industry: aluminium marine fabrication and structural assemblies.
- Transportation industry: machined and fabricated aluminium equipment.
- Inspection equipment industry: inspection fixtures and dimensional tooling.
- Manufacturing industry: large machined plates and production tooling.
ALCA 5 Aluminium Plate Inspection and Documentation
Inspection and documentation can include:
- Plate thickness inspection
- Plate width and length inspection
- Thickness tolerance verification
- Flatness measurement
- Surface finish inspection
- Surface roughness measurement
- Visual surface inspection
- Chemical composition verification
- Tensile strength testing
- Yield strength testing
- Elongation testing
- Brinell hardness testing
- Material Test Certificate (MTC)
- Inspection report
- Test report
- Third-party inspection when specified
ALCA 5 Aluminium Plate Supplier in India
Renaissance Fittings & Piping supplies ALCA 5 aluminium plates in India against the specified plate grade, thickness, dimensions, flatness, surface finish and inspection documentation.
For quotation, provide:
- ALCA 5 grade
- Plate thickness
- Plate width
- Plate length
- Quantity
- Flatness requirement
- Surface finish
- Surface protection
- Machining requirement
- Inspection documentation
- Delivery location
ALCA 5 Aluminium Plate Enquiry
For an ALCA 5 aluminium plate enquiry, specify the plate thickness, width, length, quantity, flatness tolerance and surface finish. For machining applications, include the finished dimensions and machining requirement with the enquiry.
Aluminium Precision Cast Plate
For the broader material range, dimensional specifications and other precision cast plate grades, visit the Aluminium Precision Cast Plate Supplier in India category.
