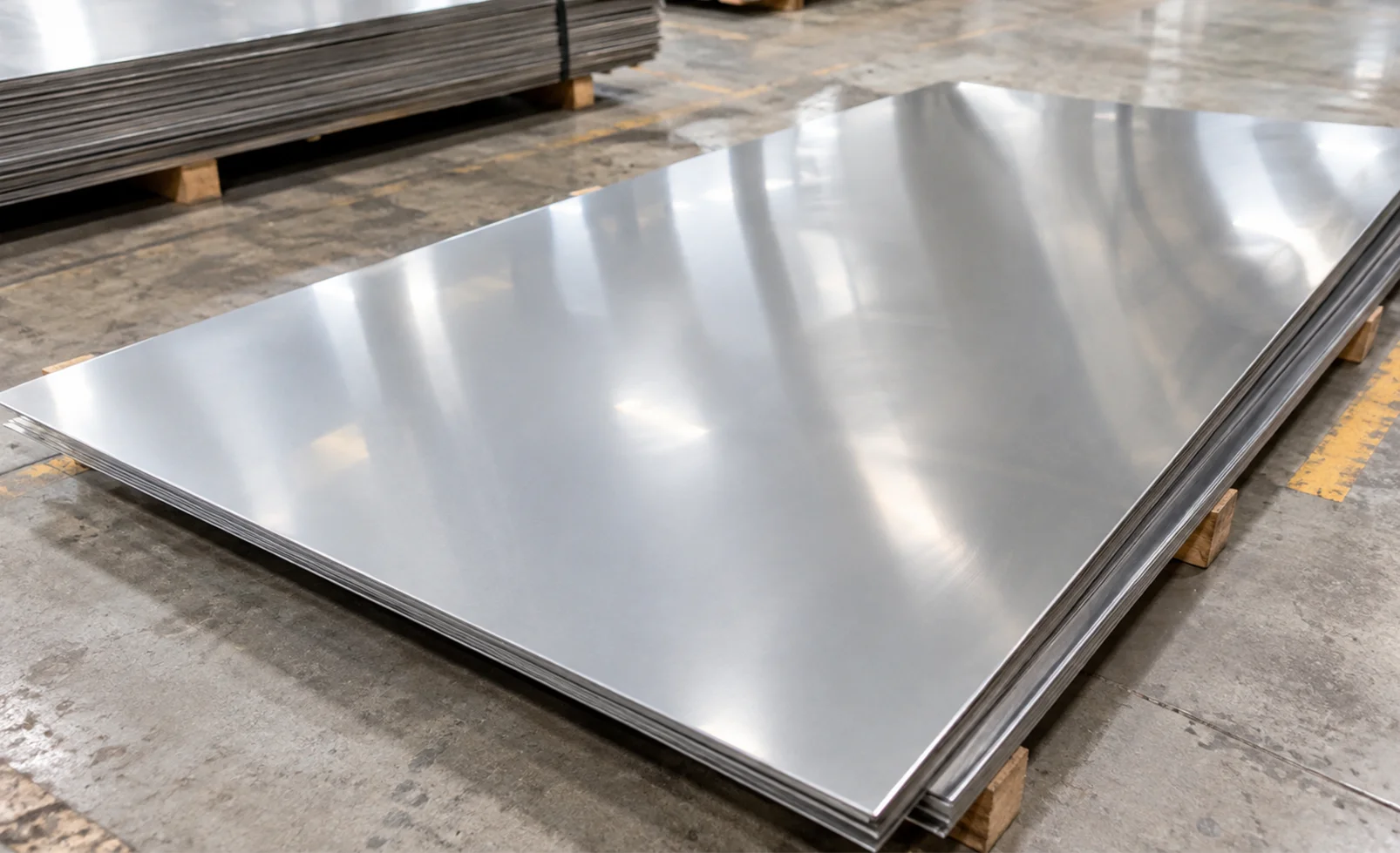

Renaissance Fittings & Piping supplies aluminium precision cast plates in India for CNC machining, tooling, moulds, jigs, fixtures and dimensional-critical fabrication. The range covers 5000-series cast plates such as ALCA 5 / ACP 5080 and 7000-series cast plates such as MIC6, with precision-milled surfaces and controlled thickness and flatness tolerances.
Standard plate thickness ranges from 5.0 mm to 100.0 mm, with standard plate dimensions of 1270 × 2570 mm, 1570 × 3070 mm and 1570 × 3670 mm. Thickness tolerance is ±0.10 mm, while flatness is controlled between ≤0.13 mm and 0.40 mm, depending on plate thickness.
Aluminium Precision Cast Plate Specifications
| Parameter | Specification |
|---|---|
| Product | Aluminium Precision Cast Plates |
| Standard Thickness | 5.0–100.0 mm |
| Custom Thickness | Up to 150 mm |
| Standard Dimensions | 1270 × 2570 mm, 1570 × 3070 mm, 1570 × 3670 mm |
| Thickness Tolerance | ±0.10 mm |
| Flatness | ≤0.13–0.40 mm, proportional to plate thickness |
| Surface Finish | Ra 0.40–0.80 µm |
| Surface Condition | Precision milled on both faces |
| Surface Protection | Double-sided PE/PVC protective masking foil |
| Chemistry Standard | EN 573-3 |
| Tolerance Standards | EN 485-3 / DIN SPEC 91529 |
Precision Cast Plate Material Grades
The precision cast plate range covers two principal material families used for machining and tooling applications: 5000-series magnesium-based cast plates and 7000-series zinc-based cast plates.
5000-Series Precision Cast Plates
The 5000-series family is based on EN AW-5083 / AlMg4.5Mn0.7 and includes commercial designations such as ALCA 5, ACP 5080, G.AL C250 and ATP-5. The supplied reference data lists tensile strength of 240–290 MPa, yield strength of 110–130 MPa and hardness of 70–74 HBW.
For grade-specific specifications, see ALCA 5 aluminium plate supplier for the dedicated ALCA 5 product range.
7000-Series Precision Cast Plates
The 7000-series family uses a modified AlZnMgCu matrix and includes commercial designations such as MIC6, ACP 7000 and G.AL C330. The reference data lists tensile strength of 165–241 MPa, yield strength of 105–138 MPa and hardness of 65–68 HBW.
For the specific MIC6 grade, see MIC6 aluminium plates supplier in India for detailed product specifications and supply information.
Precision Cast Plate Chemical Composition
| Element | 5000-Series Cast | 7000-Series Cast |
|---|---|---|
| Aluminium (Al) | Balance | 91.40–95.70% |
| Magnesium (Mg) | 4.00–4.90% | 2.10–2.90% |
| Zinc (Zn) | Max 0.25% | 5.10–6.10% |
| Copper (Cu) | Max 0.10% | 1.20–2.00% |
| Manganese (Mn) | 0.40–1.00% | 0.40–1.50% |
| Silicon (Si) | Max 0.40% | 0.40–0.80% |
| Iron (Fe) | Max 0.40% | Max 0.10% |
| Chromium (Cr) | 0.05–0.25% | 0.02–0.30% |
| Titanium (Ti) | Max 0.15% | 0.01–0.10% |
Precision Cast Plate Mechanical Properties
| Property | 5000-Series Cast | 7000-Series Cast |
|---|---|---|
| Tensile Strength (Rm) | 240–290 MPa | 165–241 MPa |
| Yield Strength (Rp0.2) | 110–130 MPa | 105–138 MPa |
| Brinell Hardness | 70–74 HBW | 65–68 HBW |
| Elongation at Break (A5) | 15–16% | ~3% |
| Density | 2.66 g/cm³ | 2.78 g/cm³ |
| Thermal Conductivity | 110–140 W/(m·K) | 142 W/(m·K) |
| Modulus of Elasticity | ~70,000 MPa | ~71,000 MPa |
Precision Cast Plate Thickness and Dimensions
| Parameter | Standard |
|---|---|
| Thickness | 5.0–100.0 mm |
| Custom Thickness | Up to 150 mm |
| Plate Dimension 1 | 1270 × 2570 mm |
| Plate Dimension 2 | 1570 × 3070 mm |
| Plate Dimension 3 | 1570 × 3670 mm |
| Thickness Tolerance | ±0.10 mm |
| Flatness | ≤0.13–0.40 mm |
The final plate size should be specified together with thickness, tolerance and required surface condition when requesting a quotation.
Precision Cast Plate Surface Finish
Precision cast plates are milled on both faces to achieve the specified surface condition.
| Surface Parameter | Specification |
|---|---|
| Surface Finish | Ra 0.40–0.80 µm |
| Milling | Precision milled, both faces |
| Protection | PE/PVC protective masking on both sides |
The protective masking helps preserve the machined plate surfaces during handling and transportation.
Precision Cast Plate Standards and Tolerances
| Requirement | Applicable Standard |
|---|---|
| Chemical Composition | EN 573-3 |
| Aluminium Plate Tolerances | EN 485-3 |
| Precision Cast Plate Tolerance Reference | DIN SPEC 91529 |
These standards are relevant when specifying the material chemistry and dimensional control for precision cast plate procurement.
Aluminium Precision Cast Plate Grade Equivalents
| Casting Alloy Class | Base Material Code | Standard Alloy Designation | Commercial Equivalents |
|---|---|---|---|
| 5000-Series Cast | EN AW-5083 / AlMg4.5Mn0.7 | AA 5083 | ALCA 5, ACP 5080, G.AL C250, ATP-5 |
| 7000-Series Cast | Modified AlZnMgCu Matrix | AA 7xxx Base | MIC6, ACP 7000, G.AL C330 |
Commercial designations should be stated on the enquiry along with the required thickness and dimensions to avoid confusion between standard aluminium plate and precision cast plate grades.
Precision Cast Plate Applications
Precision cast plates are used where plate flatness, dimensional control and a machined surface are important to the finished component or tooling.
- Machine Tool Industry: CNC machine bases, machine structures and precision-machined plates
- Tooling Industry: tooling plates, fixtures, jigs and machining bases
- Mould Industry: mould bases, mould plates and tooling blocks
- Inspection Industry: inspection fixtures, checking fixtures and gauge bases
- Automation Industry: machine frames, mounting plates and precision equipment structures
- Industrial Machinery: machined equipment plates and fabricated machine components
- Prototype Manufacturing: prototype tooling, machining blocks and development fixtures
- Vacuum Forming: tooling plates and mould bases
- Engineering Fabrication: dimensional-critical machined and fabricated assemblies
Precision Cast Plate Machining and Processing
The plate specification can be matched to the machining operation and finished component dimensions.
- CNC milling
- Precision surface milling
- Drilling
- Machining of tooling plates
- Fixture and jig machining
- Cut-to-size preparation
- Surface machining
- Fabrication and assembly preparation
For CNC-intensive applications, the enquiry should state the required plate thickness, final dimensions, flatness tolerance and surface finish.
Precision Cast Plate Inspection and Documentation
| Inspection / Document | Scope |
|---|---|
| Dimensional Inspection | Thickness, width and length |
| Thickness Inspection | Verification against specified tolerance |
| Flatness Inspection | Plate flatness |
| Surface Inspection | Milled surface and visible defects |
| Chemical Verification | Alloy composition |
| Mechanical Testing | Tensile, yield, hardness and elongation where specified |
| Material Test Certificate | Material grade and test values |
| Inspection Report | Dimensional and material inspection data |
| Third-Party Inspection | When specified in the purchase order |
Inspection and documentation should be stated at the enquiry stage where project or quality-control requirements apply.
Aluminium Precision Cast Plate Supplier in India
Renaissance Fittings & Piping handles enquiries for aluminium precision cast plates in India across 5000-series and 7000-series material families. Quotations are prepared against the specified grade, thickness, plate dimensions, tolerance, surface finish and quantity.
For a precise quotation, provide:
- Precision cast plate grade or commercial designation
- Thickness
- Width and length
- Quantity
- Thickness tolerance
- Flatness requirement
- Surface finish
- Protective masking requirement
- Inspection requirements
- Delivery location
