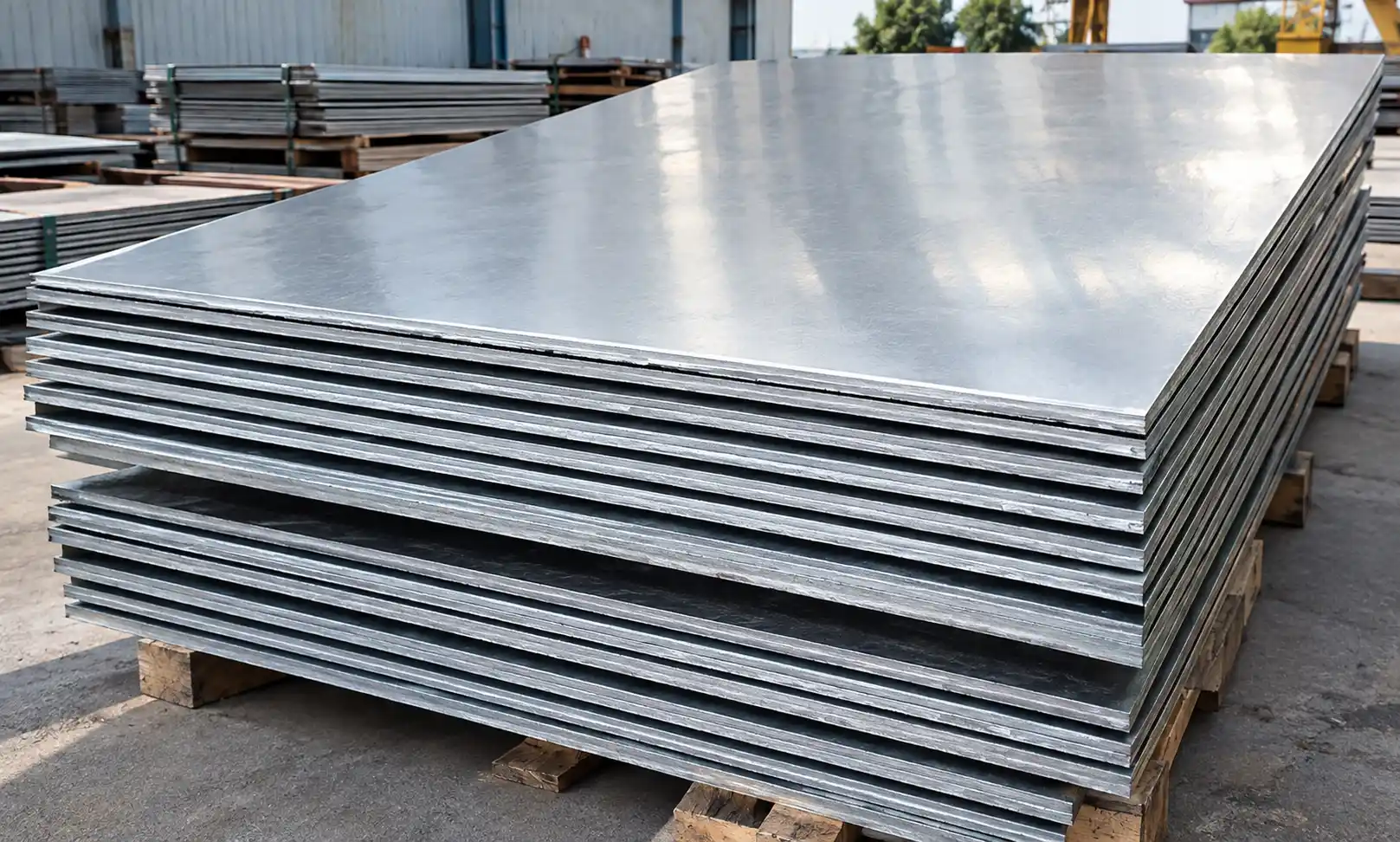

6061 T651 aluminium alloy plates are available in different thicknesses, widths and lengths for industrial, engineering, machining and fabrication requirements. The T651 condition provides a stress-relieved form of 6061 aluminium suitable for applications requiring strength and dimensional stability.
Renaissance Fittings & Piping supplies 6061 T651 aluminium plates in India to ASTM B209 / ASME SB209 specifications, with surface finishes and dimensions selected according to the order requirement. Stock availability and lead time are confirmed based on the required size and quantity.
6061 T651 Aluminium Plates Specifications
| Specification | Details |
|---|---|
| Grade | Aluminium 6061 |
| Temper | T651 |
| Product Form | Aluminium Plate |
| UNS | A96061 |
| EN Designation | EN AW-6061 |
| WNR | 3.3211 |
| DIN | AlMgSiCu |
| ISO | AlMg1SiCu |
| Aluminium Association | AA6061 |
| Standards | ASTM B209 / ASME SB209 |
| Thickness | 0.2–300 mm |
| Width | 500–2500 mm |
| Length | 500–10000 mm |
| Rolling | Hot Rolled / Cold Rolled |
| Surface | Bright, polished, hairline, brushed, sand blasted, checkered, embossed, etched |
| Finish | Mill finish or specified finish |
| Coatings | PVC, colour, polyester, fluorocarbon, polyurethane, epoxy |
Key Benefits of 6061 T651 Aluminium Plates
- High strength: Suitable for engineering and structural requirements where higher-strength aluminium is required.
- Stress-relieved condition: T651 provides improved dimensional stability during machining and fabrication.
- Good machinability: Suitable for precision machining and engineered components.
- Strength-to-weight advantage: Provides useful strength while maintaining relatively low weight.
- Corrosion resistance: Suitable for a range of industrial environments.
- Fabrication flexibility: Suitable for cutting, drilling, machining and fabrication.
- Multiple surface options: Available with mill and specified finishes for different requirements.
6061 T651 Aluminium Plate Sizes
6061 T651 Aluminium Plate Thickness and Dimensions
| Thickness Range | Width | Length |
|---|---|---|
| 0.2–300 mm | 500–2500 mm | 500–10000 mm |
Standard 6061 T651 Aluminium Plate Sizes
| Thickness (mm) | Width (mm) | Length (mm) |
|---|---|---|
| 0.51 | 1220 | 3660 |
| 0.81 | 1220 | 3660 |
| 0.91 | 1220 | 3660 |
| 1.02 | 1220 | 3660 |
| 1.27 | 1220 | 3660 |
| 1.60 | 1220 | 3660 |
| 2.03 | 1220 | 3660 |
| 2.29 | 1220 | 3660 |
| 2.54 | 1220 | 3660 |
| 3.00 | 1220 | 3660 |
| 3.18 | 1220 | 3660 |
| 4.06 | 1220 | 3660 |
| 4.76 | 1220 | 3660 |
| 5.00 | 1525 | 2440 / 3660 |
| 6.00 | 1220 / 1525 | 2440 / 3660 |
| 6.35 | 1220 / 1525 | 2440 / 3660 |
| 8.00 | 1220 / 1525 | 2440 / 3660 |
| 9.00 | 1220 / 1525 | 2440 / 3660 |
| 9.53 | 1220 / 1525 | 2440 / 3660 |
| 10.00 | 1220 / 1525 | 2440 / 3660 |
| 12.00 | 1220 / 1525 | 2440 / 3660 |
| 12.70 | 1220 / 1525 | 2440 / 3660 |
| 15.00 | 1220 / 1525 | 2440 / 3660 |
| 16.00 | 1220 / 1525 | 2440 / 3660 |
| 19.05 | 1220 / 1525 | 2440 / 3660 |
| 20.00 | 1220 / 1525 | 2440 / 3660 |
| 22.23 | 1220 / 1525 | 2440 / 3660 |
| 25.40 | 1220 / 1525 | 2440 / 3660 |
| 28.58 | 1220 / 1525 | 2440 / 3660 |
| 30.00 | 1220 / 1525 | 2440 / 3660 |
| 31.75 | 1220 / 1525 | 2440 / 3660 |
| 35.00 | 1220 / 1525 | 2440 / 3660 |
| 38.10 | 1220 / 1525 | 2440 / 3660 |
| 44.45 | 1220 / 1525 | 2440 / 3660 |
| 50.80 | 1220 / 1525 | 2440 / 3660 |
| 57.15 | 1220 / 1525 | 2440 / 3660 |
| 63.50 | 1220 / 1525 | 2440 / 3660 |
| 70.00 | 1220 / 1525 | 2440 / 3660 |
| 76.20 | 1220 / 1525 | 2440 / 3660 |
| 88.90 | 1220 / 1525 | 2440 / 3660 |
| 101.40 | 1220 / 1525 | 2440 / 3660 |
| 114.30 | 1220 / 1525 | 2440 / 3660 |
| 127.00 | 1220 / 1525 | 2440 / 3660 |
| 139.70 | 1220 / 1525 | 2440 / 3660 |
| 152.40 | 1220 / 1525 | 2440 / 3660 |
| 177.80 | 1220 / 1525 | 2440 / 3660 |
| 203.20 | 1220 / 1525 | 2440 / 3660 |
| 228.60 | 1220 / 1525 | 2440 / 3660 |
| 254.00 | 1220 / 1525 | 2440 / 3660 |
6061 T651 Aluminium Plate Weight Chart
| Thickness (mm) | Approx. Weight (kg/m²) |
|---|---|
| 0.50 | 1.35 |
| 1.00 | 2.70 |
| 1.50 | 4.05 |
| 2.00 | 5.40 |
| 2.50 | 6.75 |
| 3.00 | 8.10 |
| 4.00 | 10.80 |
| 5.00 | 13.50 |
| 6.00 | 16.20 |
| 8.00 | 21.60 |
| 10.00 | 27.00 |
| 12.00 | 32.40 |
| 15.00 | 40.50 |
| 20.00 | 54.00 |
| 25.00 | 67.50 |
| 30.00 | 81.00 |
| 40.00 | 108.00 |
| 50.00 | 135.00 |
| 60.00 | 162.00 |
| 75.00 | 202.50 |
| 100.00 | 270.00 |
6061 T651 Aluminium Chemical Composition
| Element | Composition (%) |
|---|---|
| Aluminium | Remainder |
| Magnesium | 0.80–1.20 |
| Silicon | 0.40–0.80 |
| Copper | 0.15–0.40 |
| Chromium | 0.15–0.35 |
| Iron | 0.70 max |
| Zinc | 0.25 max |
| Manganese | 0.15 max |
| Titanium | 0.15 max |
| Other, Each | 0.05 max |
| Other, Total | 0.15 max |
6061 T651 Aluminium Plate Mechanical Properties
| Property | Reference Value |
|---|---|
| Tensile Strength | 45,000 psi |
| Yield Strength | 40,000 psi |
| Shear Strength | 31,000 psi |
| Elongation in 2 inches | 17% |
| Brinell Hardness | 95 HB |
6061 T651 Aluminium Plate Equivalent Grades
| Designation | Equivalent |
|---|---|
| Aluminium Grade | 6061 T651 |
| UNS | A96061 |
| EN | EN AW-6061 |
| WNR | 3.3211 |
| AA | AA6061 |
| DIN | AlMgSiCu |
| ISO | AlMg1SiCu |
ASTM B209 6061 T651 Aluminium Plates
6061 T651 aluminium plates are supplied to ASTM B209 / ASME SB209 requirements. Dimensions, thickness and surface finish are specified according to the order requirement.
The required T651 condition can be supplied with inspection and documentation requirements specified for the order.
Quality Inspection & Documentation
Quality inspection and documentation can be arranged according to the applicable specification and purchase requirement.
- Visual inspection
- Dimensional inspection
- Thickness, width and length verification
- Grade and temper verification
- Chemical composition testing
- Mechanical property testing
- Hardness testing
- Surface finish inspection
- PMI testing where specified
- Third-party inspection where required
- Mill Test Certificate (MTC)
- Certificate of Conformity (CoC), where specified
- Inspection and test reports as applicable
6061 T651 Aluminium Plate Types
- 6061 T651 Aluminium Alloy Plates
- ASTM B209 6061 T651 Aluminium Plates
- ASME SB209 6061 T651 Aluminium Plates
- 6061 T651 Hot Rolled Plates
- 6061 T651 Cold Rolled Plates
- 6061 T651 Industrial Plates
- 6061 T651 Tread / Diamond Plates
6061 T651 Aluminium Plate Surface and Finish
Available surface options include:
- Bright finish
- Polished finish
- Hairline finish
- Brushed finish
- Sand-blasted finish
- Checkered finish
- Embossed finish
- Etched finish
- Mill finish
- Specified surface finish
Coated plates can also be supplied with PVC, colour, polyester, fluorocarbon, polyurethane or epoxy coatings where specified.
6061 T651 Aluminium Plate Applications
6061 T651 aluminium plates are used across industries where a combination of strength, machinability, dimensional stability and relatively low weight is required.
- Aerospace industry: Aircraft structural and machined aluminium components.
- Automotive industry: Vehicle components, structural parts and fabricated assemblies.
- Marine industry: Marine equipment, structural components and fabricated parts.
- Transportation industry: Rail, vehicle and transportation equipment components.
- Machinery industry: Machine components, bases, frames and precision-machined parts.
- Engineering industry: General engineering equipment and fabricated components.
- Industrial fabrication: Structural assemblies, equipment panels and fabricated parts.
- Tooling industry: Fixtures, tooling and machined tooling components.
- Defence industry: Engineered and fabricated aluminium components.
- Construction industry: Lightweight structural and fabricated aluminium components.
Supply Across Major Industrial Cities
| Supply Across Major Industrial Cities | |||
|---|---|---|---|
| Mumbai | Pune | Nashik | Nagpur |
| Ahmedabad | Vadodara | Surat | Rajkot |
| Delhi | Noida | Ghaziabad | Gurugram |
| Faridabad | Jaipur | Chandigarh | Ludhiana |
| Kolkata | Howrah | Durgapur | Bhubaneswar |
| Chennai | Coimbatore | Madurai | Bengaluru |
| Hyderabad | Visakhapatnam | Vijayawada | Kochi |
| Thiruvananthapuram | Indore | Bhopal | Raipur |
| Ranchi | Jamshedpur | Patna | Guwahati |
6061 T651 Aluminium Plate Enquiry
For quotation and availability, provide:
- Plate thickness
- Width and length
- Quantity
- Required surface finish
- Applicable standard
- Delivery location
