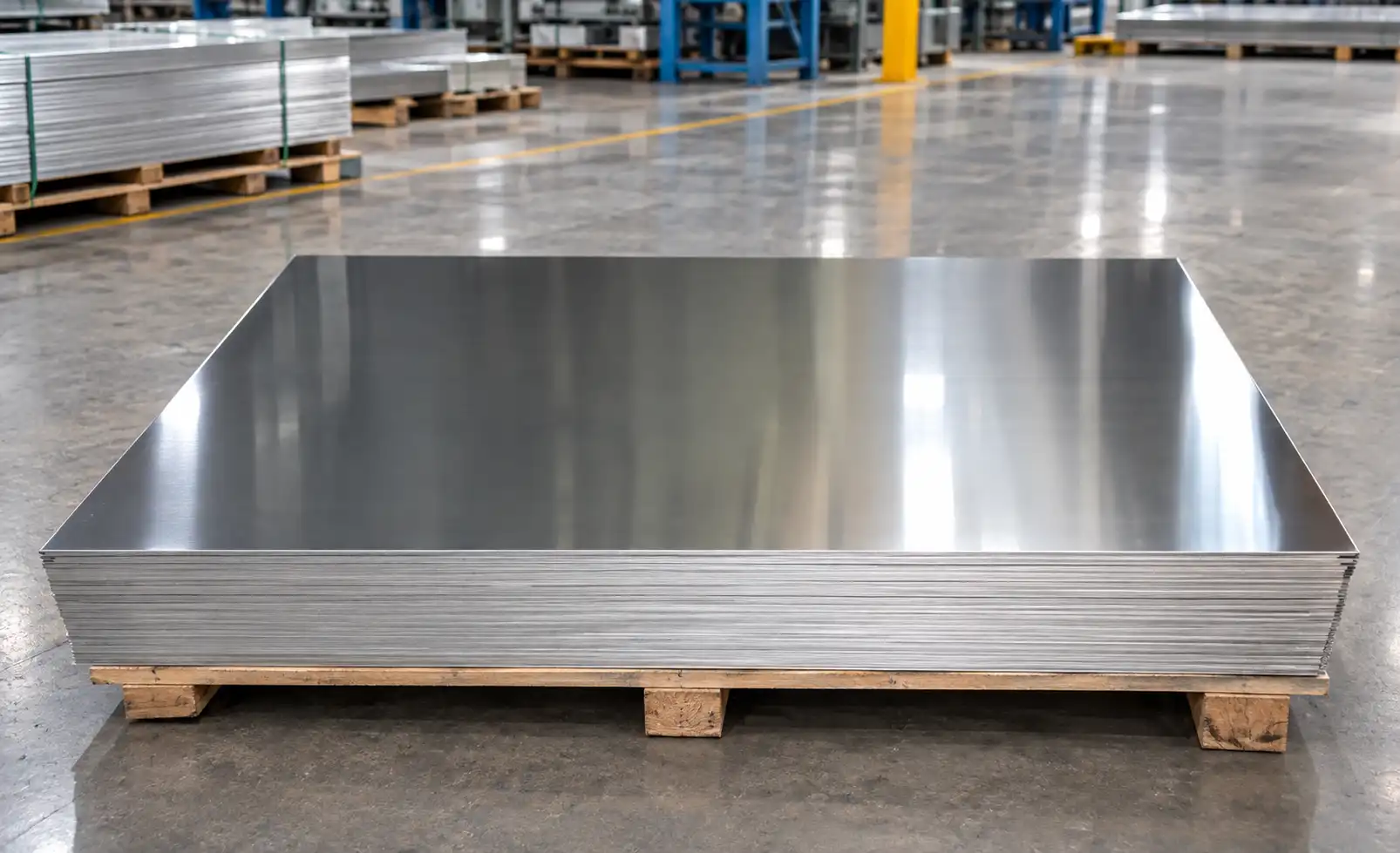

6061 T6 Aluminium Plates

6061 T6 aluminium plates are available in different thicknesses, widths and lengths with mill, bright, polished and other specified surface finishes. Renaissance Fittings & Piping supplies 6061 T6 aluminium plates for industrial, engineering and fabrication requirements.

6061 T6 aluminium plates in India are supplied to ASTM B209 / ASME SB209 specifications, with stock availability and lead time confirmed according to the required dimensions and quantity.

Request a Quote

6061 T6 Aluminium Plates Specifications

Specification Details
Aluminium Grade 6061
Temper T6
Product Form Aluminium Plates
UNS A96061
EN Designation EN AW-6061
Werkstoff No. 3.3211
DIN Designation AlMgSiCu
ISO Designation AlMg1SiCu
Product Standard ASTM B209 / ASME SB209
Thickness 0.2–300 mm
Width 500–2500 mm
Length 500–10000 mm
Product Type Hot Rolled / Cold Rolled
Surface Bright, polished, hairline, brushed, sand blasted, checkered, embossed, etched
Finish Mill / customer-specific finish
Coating PVC, colour, polyester, fluorocarbon, polyurethane, epoxy

Standard sizes, available stock and supply lead time are confirmed according to the selected thickness, width, length and quantity.

6061 T6 Aluminium Plate Sizes

Standard 6061 T6 Aluminium Plate Sizes

Thickness (mm) Width (mm) Length (mm)
0.51 1220 3660
0.81 1220 3660
0.91 1220 3660
1.02 1220 3660
1.27 1220 3660
1.60 1220 3660
2.03 1220 3660
2.29 1220 3660
2.54 1220 3660
3.00 1220 3660
3.18 1220 3660
4.06 1220 3660
4.76 1220 3660
5.00 1525 2440 / 3660
6.00 1220 / 1525 2440 / 3660
6.35 1220 / 1525 2440 / 3660
8.00 1220 / 1525 2440 / 3660
9.00 1220 / 1525 2440 / 3660
9.53 1220 / 1525 2440 / 3660
10.00 1220 / 1525 2440 / 3660
12.00 1220 / 1525 2440 / 3660
12.70 1220 / 1525 2440 / 3660
15.00 1220 / 1525 2440 / 3660
16.00 1220 / 1525 2440 / 3660
19.05 1220 / 1525 2440 / 3660
20.00 1220 / 1525 2440 / 3660
22.23 1220 / 1525 2440 / 3660
25.40 1220 / 1525 2440 / 3660
28.58 1220 / 1525 2440 / 3660
30.00 1220 / 1525 2440 / 3660
31.75 1220 / 1525 2440 / 3660
35.00 1220 / 1525 2440 / 3660
38.10 1220 / 1525 2440 / 3660
44.45 1220 / 1525 2440 / 3660
50.80 1220 / 1525 2440 / 3660
57.15 1220 / 1525 2440 / 3660
63.50 1220 / 1525 2440 / 3660
70.00 1220 / 1525 2440 / 3660
76.20 1220 / 1525 2440 / 3660
88.90 1220 / 1525 2440 / 3660
101.40 1220 / 1525 2440 / 3660
114.30 1220 / 1525 2440 / 3660
127.00 1220 / 1525 2440 / 3660
139.70 1220 / 1525 2440 / 3660
152.40 1220 / 1525 2440 / 3660
177.80 1220 / 1525 2440 / 3660
203.20 1220 / 1525 2440 / 3660
228.60 1220 / 1525 2440 / 3660
254.00 1220 / 1525 2440 / 3660

6061 T6 Aluminium Plate Weight Chart

Thickness Approx. Weight
0.50 mm 1.35 kg/m²
1.00 mm 2.70 kg/m²
1.50 mm 4.05 kg/m²
2.00 mm 5.40 kg/m²
2.50 mm 6.75 kg/m²
3.00 mm 8.10 kg/m²
4.00 mm 10.80 kg/m²
5.00 mm 13.50 kg/m²
6.00 mm 16.20 kg/m²
8.00 mm 21.60 kg/m²
10.00 mm 27.00 kg/m²
12.00 mm 32.40 kg/m²
15.00 mm 40.50 kg/m²
20.00 mm 54.00 kg/m²
25.00 mm 67.50 kg/m²
30.00 mm 81.00 kg/m²
40.00 mm 108.00 kg/m²
50.00 mm 135.00 kg/m²
60.00 mm 162.00 kg/m²
75.00 mm 202.50 kg/m²
100.00 mm 270.00 kg/m²

6061 T6 Aluminium Plate Chemical Composition

Element Composition
Aluminium Balance
Magnesium (Mg) 0.80–1.20%
Silicon (Si) 0.40–0.80%
Copper (Cu) 0.15–0.40%
Chromium (Cr) 0.15–0.35%
Iron (Fe) 0.70% max
Zinc (Zn) 0.25% max
Manganese (Mn) 0.15% max
Titanium (Ti) 0.15% max
Other, each 0.05% max
Other, total 0.15% max

6061 T6 Aluminium Plate Mechanical Properties

Mechanical Property Reference Value
Tensile Strength 45,000 psi
Yield Strength 40,000 psi
Shear Strength 31,000 psi
Elongation in 2 in. 12%
Brinell Hardness 95 HB

6061 T6 Aluminium Plate Equivalent Grades

Designation System Equivalent Grade
Aluminium Grade 6061 T6
UNS A96061
EN EN AW-6061
Werkstoff No. 3.3211
DIN AlMgSiCu
ISO AlMg1SiCu
USA AA 6061

ASTM B209 6061 T6 Aluminium Plates

Specification Details
Grade Aluminium 6061
Temper T6
Standard ASTM B209 / ASME SB209
Product Aluminium Plate
Thickness 0.2–300 mm
Width 500–2500 mm
Length 500–10000 mm
Surface Bright, polished, hairline, brushed, sand blasted, checkered, embossed, etched
Finish Mill / customer-specific
Coating PVC, colour, polyester, fluorocarbon, polyurethane, epoxy

6061 T6 Aluminium Plate Surface and Finish Options

  • Mill finish
  • Bright finish
  • Polished finish
  • Hairline finish
  • Brushed finish
  • Sand blasted finish
  • Checkered surface
  • Embossed surface
  • Etched surface
  • PVC coated
  • Colour coated
  • Polyester coated
  • Fluorocarbon coated
  • Polyurethane coated
  • Epoxy coated

6061 T6 Aluminium Plates Applications

  • Engineering components
  • Machinery and equipment
  • Structural components
  • Transportation equipment
  • Automotive components
  • Industrial fabrication
  • Machine frames
  • Fabricated aluminium structures
  • Industrial equipment
  • General engineering components

6061 T6 Aluminium Plates Supplier and Stockist in India

Renaissance Fittings & Piping supplies 6061 T6 aluminium plates in India in different thicknesses, widths and lengths, with standard and specified surface finishes.

Stock availability and lead time are confirmed according to the selected dimensions and quantity.

6061 T6 Aluminium Plate Enquiry Details

  • Grade: 6061 T6
  • Product: Aluminium Plate
  • Thickness
  • Width × Length
  • Quantity
  • ASTM/ASME specification
  • Surface finish
  • Coating, if required
  • Delivery schedule
Request a Quote


Explore 6082 & 6061 Aluminium Sheets and Plates

Explore the complete 6082 & 6061 Aluminium Sheets and Plates range for additional aluminium alloy sheet and plate requirements.
