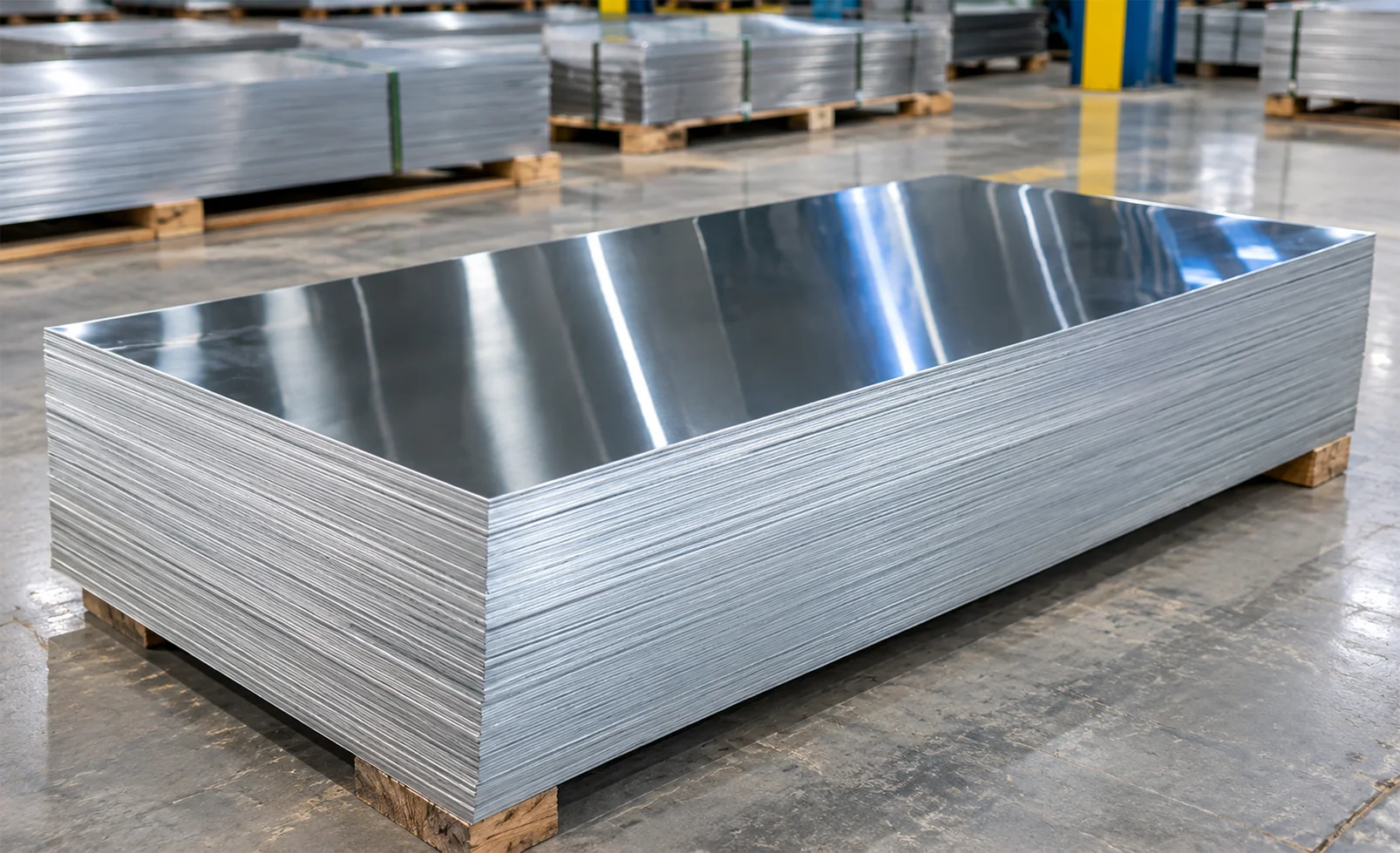

7075 T7351 aluminium plates are supplied for applications that require the T7351 temper and controlled strength across different plate thicknesses. The T7351 condition is available for high-strength aluminium plate requirements in aerospace, defence, tooling, engineering and other demanding industrial applications.
Renaissance Fittings & Piping supplies 7075 T7351 plates in India against specified thickness, plate dimensions, quantity and certification requirements. Share the required plate size and quantity to confirm material availability and quotation.
7075 T7351 Aluminium Plate Technical Specification
| Parameter | 7075 T7351 |
|---|---|
| Alloy | Aluminium 7075 |
| Temper | T7351 |
| Product | Aluminium Alloy Plate |
| Alloy System | Aluminium-Zinc-Magnesium-Copper |
| UNS | A97075 |
| EN Designation | EN AW-7075 / EN AW-AlZn5.5MgCu |
| DIN / WNr | 3.4365 / AlZnMgCu1.5 |
| JIS | 7075 |
| AFNOR | 7075 A-Z5GU |
| ISO | AlZn6MgCu |
| BS | 7075 L95 L96 |
| GOST | V95 |
7075 T7351 Plate Mechanical Properties by Thickness
| Plate Thickness | Proof Strength, Min. | Yield Strength, Min. | Elongation A50 |
|---|---|---|---|
| Over 6.3 to 51 mm | 441 MPa | 510 MPa | 9% |
| Over 51 to 76 mm | 434 MPa | 503 MPa | 8% |
| Over 76 to 102 mm | 427 MPa | 496 MPa | 6% |
| Over 102 to 127 mm | 421 MPa | 490 MPa | 5% |
| Over 127 to 152 mm | 414 MPa | 483 MPa | 4% |
| Over 152 to 178 mm | 407 MPa | 476 MPa | 4% |
| Over 178 to 203 mm | 400 MPa | 469 MPa | 4% |
7075 T7351 Aluminium Plate Chemical Composition
| Element | Composition (%) |
|---|---|
| Silicon (Si) | 0.00–0.12 |
| Tin (Sn) | 0.00 |
| Chromium (Cr) | 0.00–0.04 |
| Manganese (Mn) | 0.00–0.10 |
| Magnesium (Mg) | 1.90–2.60 |
| Copper (Cu) | 2.00–2.60 |
| Lead (Pb) | 0.00 |
| Titanium (Ti) | 0.00–0.06 / 0.08–0.15 |
| Iron (Fe) | 0.00–0.15 |
| Zinc (Zn) | 5.70–6.70 |
| Nickel (Ni) | 0.00 |
| Titanium + Zirconium (Ti + Zr) | 0.00–0.25 |
| Aluminium (Al) | Balance |
7075 T7351 Aluminium Plate Equivalent Designations
| System | Designation |
|---|---|
| UNS | A97075 |
| EN | EN AW-7075 / EN AW-AlZn5.5MgCu |
| DIN / WNr | 3.4365 / AlZnMgCu1.5 |
| JIS | 7075 |
| AFNOR | 7075 A-Z5GU |
| ISO | AlZn6MgCu |
| BS | 7075 L95 L96 |
| GOST | V95 |
7075 T7351 Aluminium Plates for High-Strength Applications
The T7351 plate range is relevant where the material specification calls for 7075 aluminium in the T7351 condition rather than a general 7075 temper.
Typical industries include:
- Aerospace: High-strength aluminium plate requirements for aerospace engineering and structural applications.
- Defence: Lightweight, high-strength aluminium applications requiring specified material properties.
- Tooling: High-strength tooling and precision-machining requirements.
- Automotive: Weight-sensitive engineering and performance applications.
- Machinery: High-strength machined and engineered aluminium applications.
- Transportation: Lightweight structural and engineered transportation applications.
- Industrial engineering: High-strength fabricated and machined aluminium applications.
7075 T7351 Aluminium Plate Supply and Processing
Renaissance Fittings & Piping can coordinate plate supply according to the required material specification and finished dimensions.
Available requirements can include:
- T7351 aluminium plate
- Cut-to-size plate
- Specified plate dimensions
- Plate cutting
- Laser cutting
- Plasma cutting
- Oxy-propane flame cutting
- Bending
- Machining
- Polishing
- Surface finishing
Processing requirements should be stated with the plate thickness, dimensions and quantity so the suitable supply option can be confirmed.
7075 T7351 Aluminium Plate Inspection and Certification
For procurement requiring material traceability and verification, documentation can be arranged according to the order specification.
- Grade and temper verification
- Chemical composition
- Mechanical properties
- Thickness and dimensional inspection
- Surface inspection
- PMI testing where specified
- Third-party inspection where specified
- Mill Test Certificate (MTC)
- Certificate of Conformity (CoC)
- Inspection and test reports
7075 T7351 Aluminium Plates Suppliers in India
Renaissance Fittings & Piping supplies 7075 T7351 aluminium plates in India for enquiries requiring a specific alloy temper rather than a general 7075 aluminium plate.
For quotation, provide the T7351 temper, plate thickness, width, length, quantity and any cutting, inspection or certification requirement. Material availability and lead time are confirmed against the requested specification.
7075 T7351 Aluminium Plate Enquiry
Send the following details to check supply:
- T7351 temper
- Plate thickness
- Width
- Length
- Quantity
- Required standard/specification
- Cutting or processing requirement
- Inspection or certification requirement
- Delivery location
For other 7075 alloy tempers and plate specifications, see the 7075 Aluminium Sheets and Plates range.
