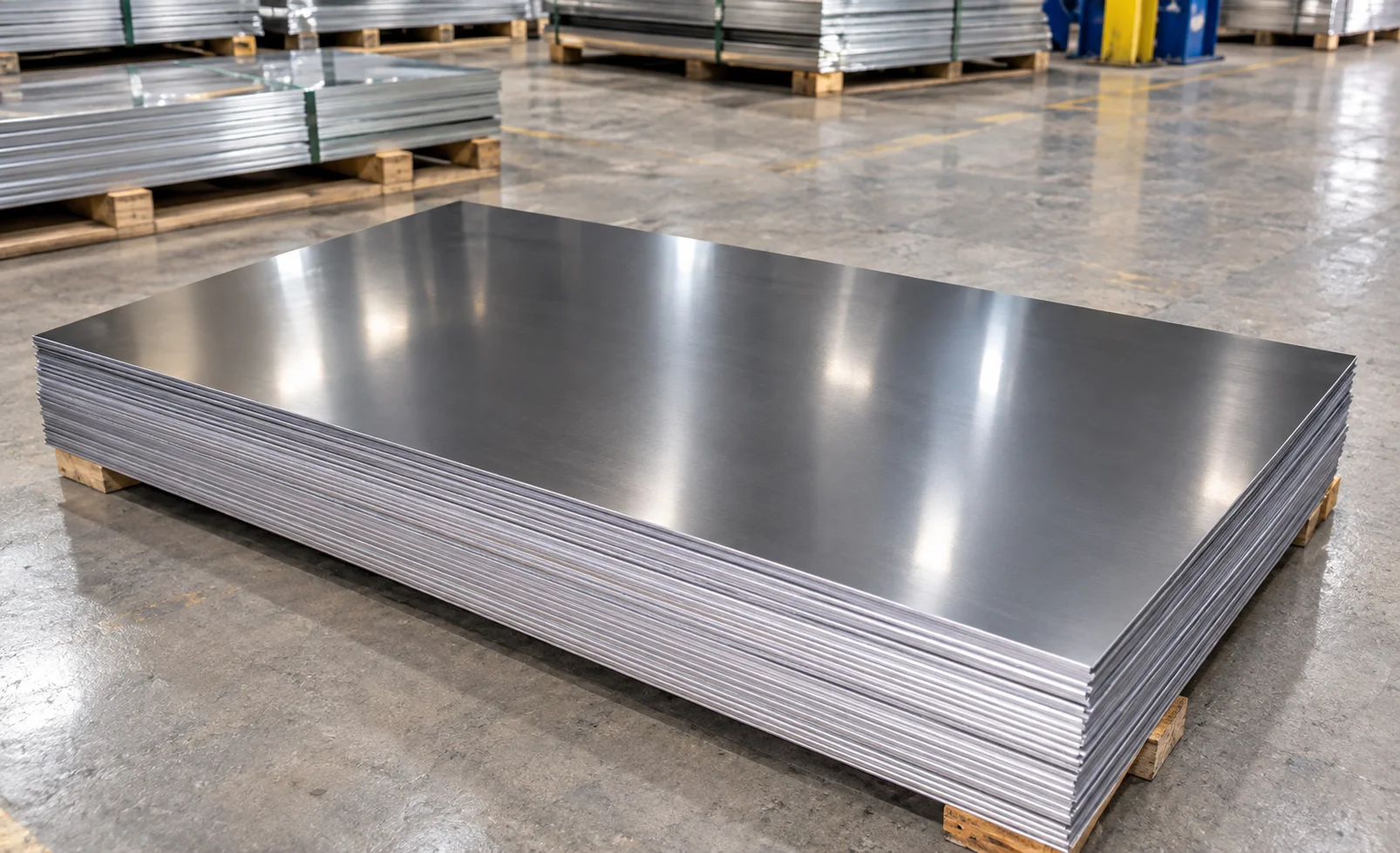

7075 T651 aluminium plates are supplied for high-strength aerospace, defence, tooling, automotive, machinery and engineering requirements where the T651 temper and specified plate dimensions are required. Plates are available in thicknesses from 0.3 mm to 120 mm, with different widths, lengths and surface finishes.
Renaissance Fittings & Piping supplies 7075 T651 aluminium plates in India to ASTM B209 / ASME SB209 specifications. Stock availability, dimensions, quantity and lead time are confirmed according to the required plate specification.
7075 T651 Aluminium Plate Specifications
| Specification | Details |
|---|---|
| Aluminium Grade | 7075 |
| Temper | T651 |
| Product Form | Aluminium Plate |
| Specification | ASTM B209 / ASME SB209 |
| UNS | A97075 |
| EN | EN AW-7075 / EN AW-AlZn5.5MgCu |
| DIN / WNr | 3.4365 / AlZnMgCu1.5 |
| JIS | 7075 |
| AFNOR | 7075 A-Z5GU |
| ISO | AlZn6MgCu |
| BS | 7075 L95 L96 |
| GOST | V95 |
| Thickness | 0.3 mm to 120 mm |
| Width | 1000, 1219, 1500, 1800, 2000, 2500, 3000, 3500 mm and other sizes |
| Length | 2000, 2440, 3000, 5800, 6000 mm and other sizes |
| Product Condition | Cold Rolled / Hot Rolled |
| Surface Options | Mill, polished, brushed, satin and other specified finishes |
Stock availability and lead time are confirmed according to the selected thickness, width, length and quantity.
7075 T651 Aluminium Plate Sizes and Dimensions
7075 T651 aluminium plates are available across a broad thickness and dimensional range. Standard and non-standard plate dimensions can be checked according to the required specification and quantity.
7075 T651 Plate Thickness Range
| Product Condition | Referenced Size Range |
|---|---|
| Cold Rolled | 0.5–6.4 mm |
| Hot Rolled | 3.0–10.0 mm |
| Overall Referenced Thickness Range | 0.3–120 mm |
7075 T651 Plate Width and Length
| Dimension | Available Sizes |
|---|---|
| Width | 1000, 1219, 1500, 1800, 2000, 2500, 3000, 3500 mm and others |
| Length | 2000, 2440, 3000, 5800, 6000 mm and others |
Plate dimensions can be specified by thickness, width and length when placing an enquiry.
ASTM B209 7075 T651 Aluminium Plate Chemical Composition
| Element | Minimum (%) | Maximum (%) |
|---|---|---|
| Silicon (Si) | — | 0.40 |
| Iron (Fe) | — | 0.50 |
| Copper (Cu) | 1.20 | 2.00 |
| Manganese (Mn) | — | 0.30 |
| Magnesium (Mg) | 2.10 | 2.90 |
| Chromium (Cr) | 0.18 | 0.28 |
| Zinc (Zn) | 5.10 | 6.10 |
| Titanium (Ti) | — | 0.20 |
| Other, Each | — | 0.05 |
| Other, Total | — | 0.15 |
| Aluminium (Al) | Balance | Balance |
ASME SB209 7075 T651 Aluminium Plate Mechanical Properties
| Temper | Thickness | Tensile Strength | Yield Strength | Elongation |
|---|---|---|---|---|
| T651 | 6.35–101.60 mm | 538–462 MPa (78–67 ksi) | 462–372 MPa (67–54 ksi) | 9–3% |
Mechanical properties vary with plate thickness and applicable product specification.
7075 T651 Aluminium Plate Equivalent Grades
| Standard | Equivalent Grade |
|---|---|
| UNS | A97075 |
| EN | EN AW-7075 / EN AW-AlZn5.5MgCu |
| DIN / WNr | 3.4365 / AlZnMgCu1.5 |
| JIS | 7075 |
| AFNOR | 7075 A-Z5GU |
| ISO | AlZn6MgCu |
| BS | 7075 L95 L96 |
| GOST | V95 |
7075 T651 Aluminium Plate Forms and Supply Options
Depending on the required product form and processing specification, supply may include:
- 7075 T651 aluminium alloy plates
- ASTM B209 7075 T651 aluminium plates
- ASME SB209 7075 T651 aluminium plates
- 7075 T651 cold rolled plates
- 7075 T651 hot rolled plates
- 7075 T651 cut-to-size plates
- 7075 aluminium chequered plates, where specified
- 7075 aluminium perforated plates, where specified
7075 T651 Aluminium Plate Surface Finish and Processing
Available surface and processing requirements can be specified according to the order:
- Mill finish
- Polished finish
- Brushed finish
- Satin finish
- Cut-to-size plates
- Laser plate cutting
- Plasma plate cutting
- Oxy-propane flame cutting
- Bending
- Rolling
- Heat treatment
- Annealing
- Forging
- Minor fabrication
Processing availability depends on the selected plate thickness, dimensions and order requirements.
7075 T651 Aluminium Plates for Industrial Applications
7075 T651 aluminium plates are supplied for applications across industries where high-strength aluminium plate is required.
- Aerospace industry: High-strength structural and machined aluminium applications.
- Defence industry: Lightweight, high-strength fabricated and engineered applications.
- Automotive industry: Weight-sensitive automotive and performance applications.
- Tooling industry: Tooling, fixtures and precision-machined applications.
- Machinery industry: High-strength machinery and industrial equipment applications.
- Engineering industry: Precision engineering and fabricated aluminium applications.
- Transportation industry: Lightweight structural and transportation equipment applications.
- Mould and die industry: High-strength tooling and mould-related applications.
- Industrial fabrication: Fabricated structures and engineered aluminium assemblies.
7075 T651 Aluminium Plate Inspection and Certification
Inspection and documentation can be arranged according to the applicable specification and order requirements:
- Visual inspection
- Dimensional inspection
- Thickness verification
- Width and length verification
- Grade and temper verification
- Chemical composition testing
- Mechanical property testing
- Hardness testing where specified
- Surface finish inspection
- PMI testing where specified
- Third-party inspection where required
- Mill Test Certificate (MTC)
- Certificate of Conformity (CoC)
- Inspection and test reports
7075 T651 Aluminium Plates Stockist in India
Renaissance Fittings & Piping supplies 7075 T651 aluminium plates in India for industrial and engineering procurement requirements. Plate supply is coordinated according to the required thickness, width, length, quantity, finish and applicable specification.
Stock and lead time are confirmed based on the selected plate dimensions and quantity.
7075 T651 Aluminium Plate Enquiry
Provide the following details for a quotation:
- Plate thickness
- Width and length
- Required quantity
- T651 temper
- Surface finish
- ASTM B209 / ASME SB209 requirement
- Cutting or processing requirement
- Delivery location
For other 7075 aluminium sheet and plate tempers and specifications, view the 7075 Aluminium Sheets and Plates range.
